【Upgraded】LINOVISION POE Over Coax EOC Converter IP Over Coax Max 3000ft Power and Data Transmission Over Regular RG59 Coaxial Cable for Upgrading Analog Surveillance System to IP Surveillance System
Blасk Frіdау - 60% оƒƒ 【Upgraded】LINOVISION POE Over Coax EOC Converter IP Over Coax Max 3000ft Power and Data Transmission Over Regular RG59 Coaxial Cable for Upgrading Analog Surveillance System to IP Surveillance System Simple review
So you can check out the other reviews at Amazon.com
only with $ 79.99
| Connector Type | BNC |
| Cable Type | Coaxial |
| Compatible Devices | Personal Computer |
| Color | White |
| Brand | LINOVISION |
- 【PoE & IP OVER COAX CONVERTER】LINOVISION’s POE IP Over Coax converter can be used to upgrade analog system to IP surveillance system while using existing coaxial cable. Compatible with RG59, RG6, RG11 cables. Supports POE standards 802.3af (PoE) and 802.3at (PoE+). EOC Receiver MUST be powered by POE switch or POE injector while Transmitter should be connected with POE devices or NON-POE devices

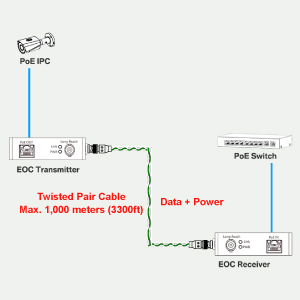

- 【POE & IP OVER TWIST PAIR CONVERTER】Each pair of EOC Converter is equipped with 2 BNC to Twist Pair connectors, which enables POE over Twist Pair transmission. 100Mbps bandwidth over 330ft regular twist pair cables while 10Mbps over 1485ft for both POE or NON-POE devices. It’s ideal for the CCTV system in elevator cart.

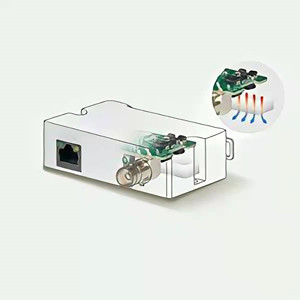

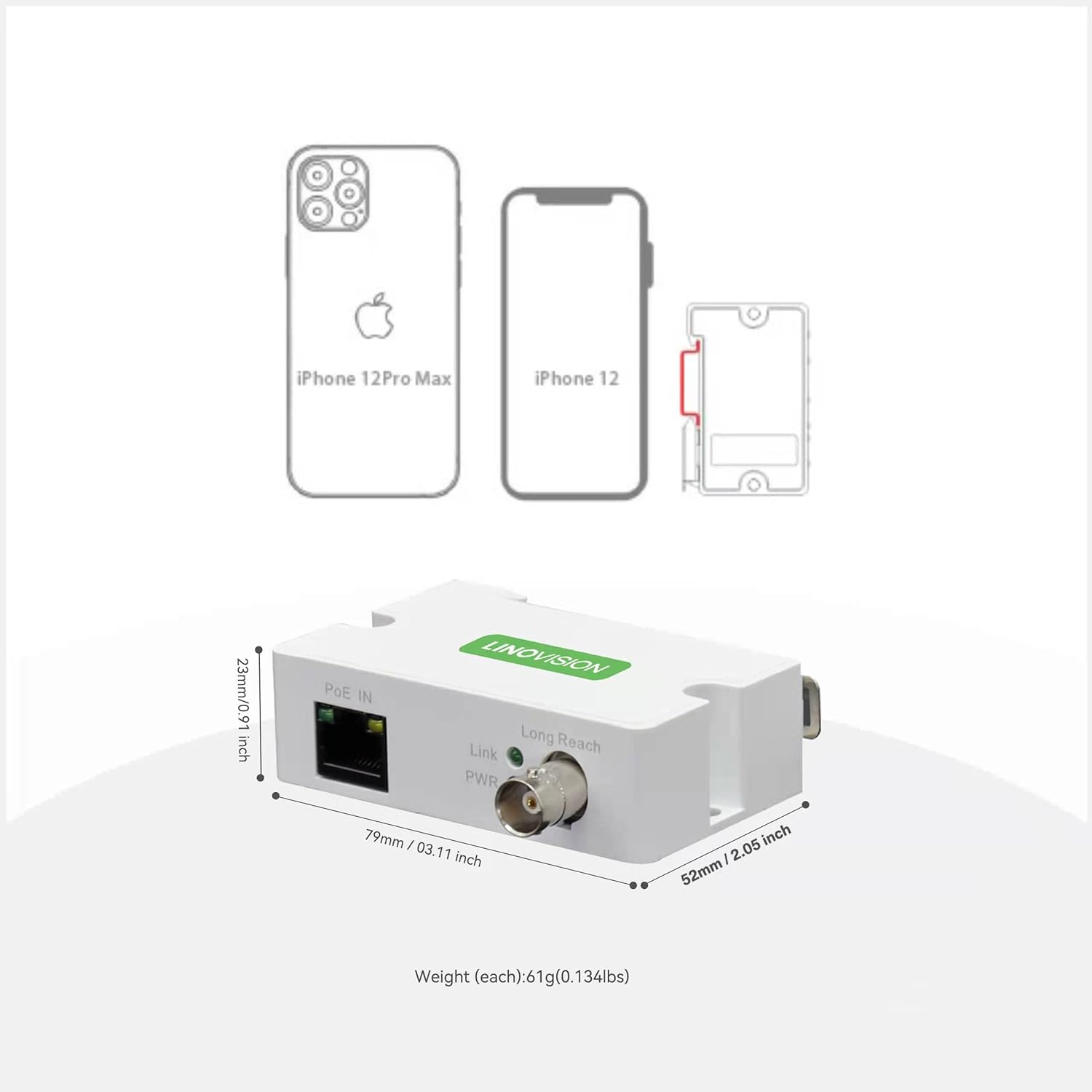

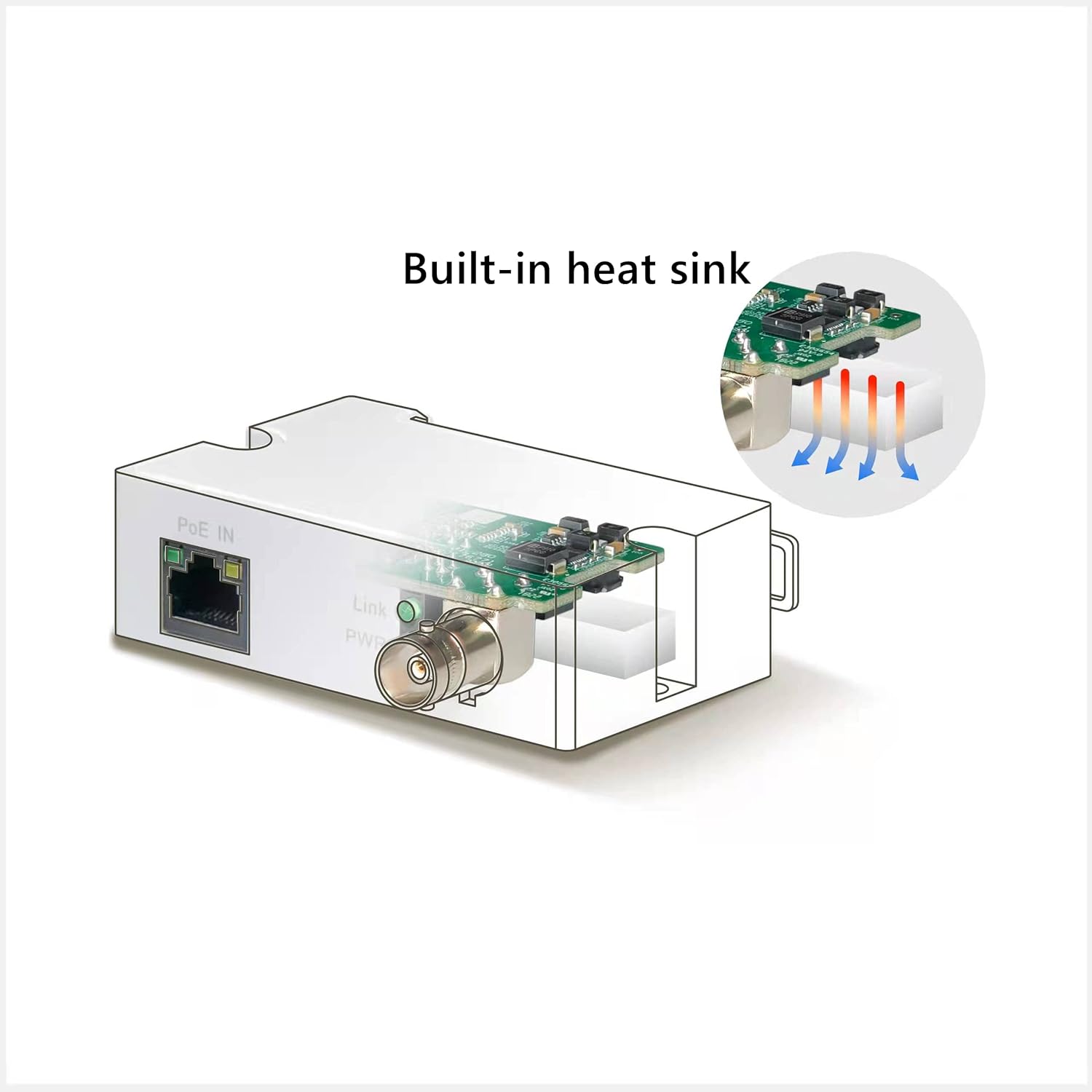

- 【INDUSTRIAL DESIGN WITH BUILT-IN HEAT SINK】Industrial design, with built-in heat sink, ensure super reliability and hassle free transmission. Indoor use ONLY. Plug-and-play, configuration free, makes installation simplest. Small design (3.1"x2.0"x0.9") and light weight.
- 【POINT TO POINT CONNECTION ONLY】Act as MoCA (Multimedia over Coax) in point-to-point connection, transmit video/audio/data/control signal over coaxial cable, so as being used with twist pair. EOC Receiver should be powered by POE switch or POE injector while Transmitter should be connected with POE devices or NON-POE devices.
- 【WORRY FREE】1 year warranty, US local technical support + Global after-hour support.
Product Description
Unique Features Compared with Competitors
 |
 |
 |
|---|---|---|
Industrial designIndustrial design, with built-in heat sink Ensure super reliability and hassle-free transmission. | POE power + Data transmissionIt can provide power to remote POE device with max. 30W power consumption and no local DC power adapter is required. | Ethernet over Twist pair cableEthernet over Twist pair cable, power line, or almost any two-pin cables. |

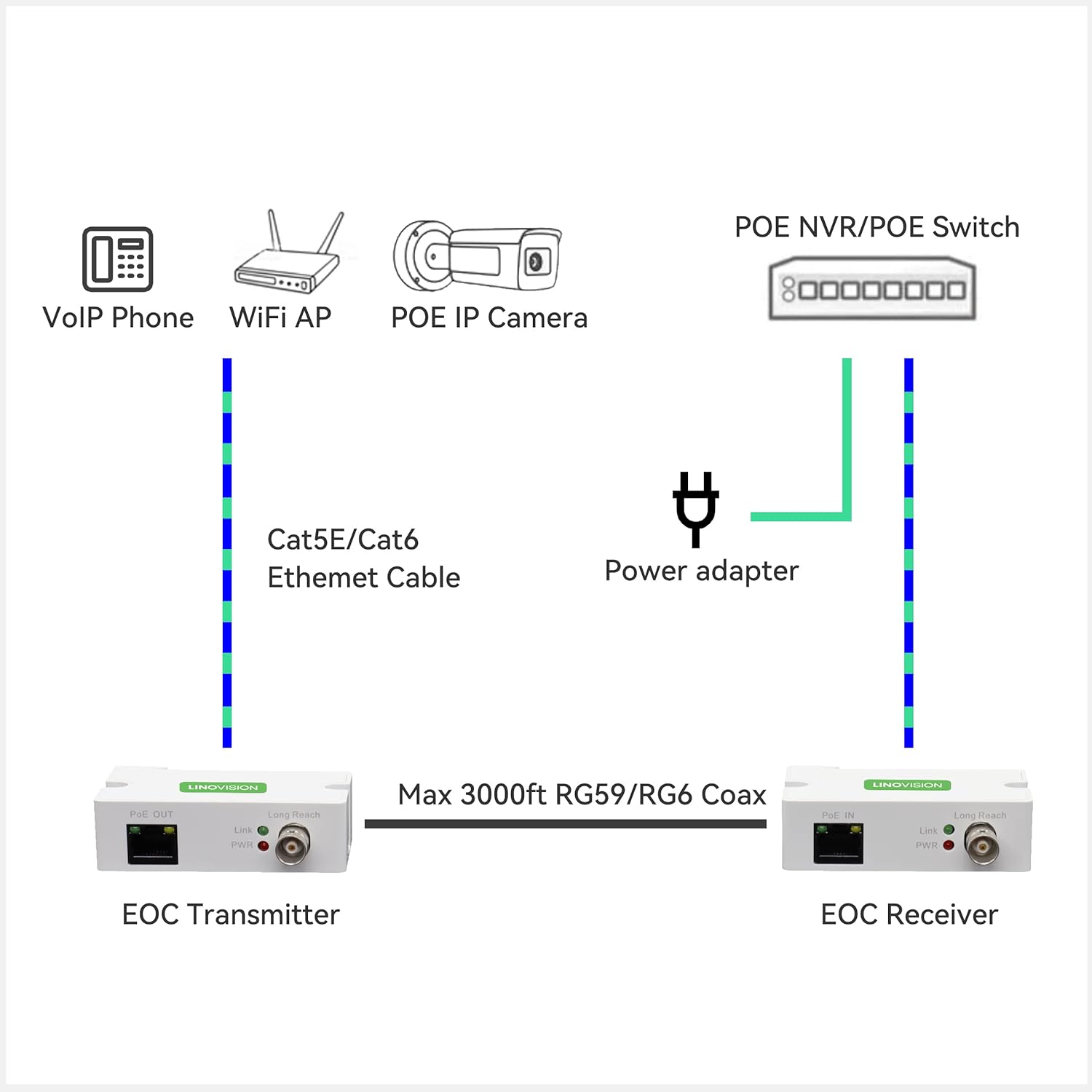

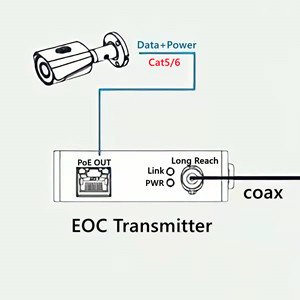

Connection Diagram
General EOC Applications
- Upgrade traditional analogue system to IP surveillance system while using existing coaxial cable(RG59 cable)
- Remote network & power transmission for POE compatible devices over coaxial cable,such as VoIP phone, WiFi AP (POE enabled)
- Remote network connection over long distance coaxial cable (100Mbps bandwidth in 300 meters or 1000ft transmission)
Application in Elevator
FAQ
Q: Why my POE device is offline when working with our EOC (IP Over Coax) Converter?
A: Several main reasons are as follow:

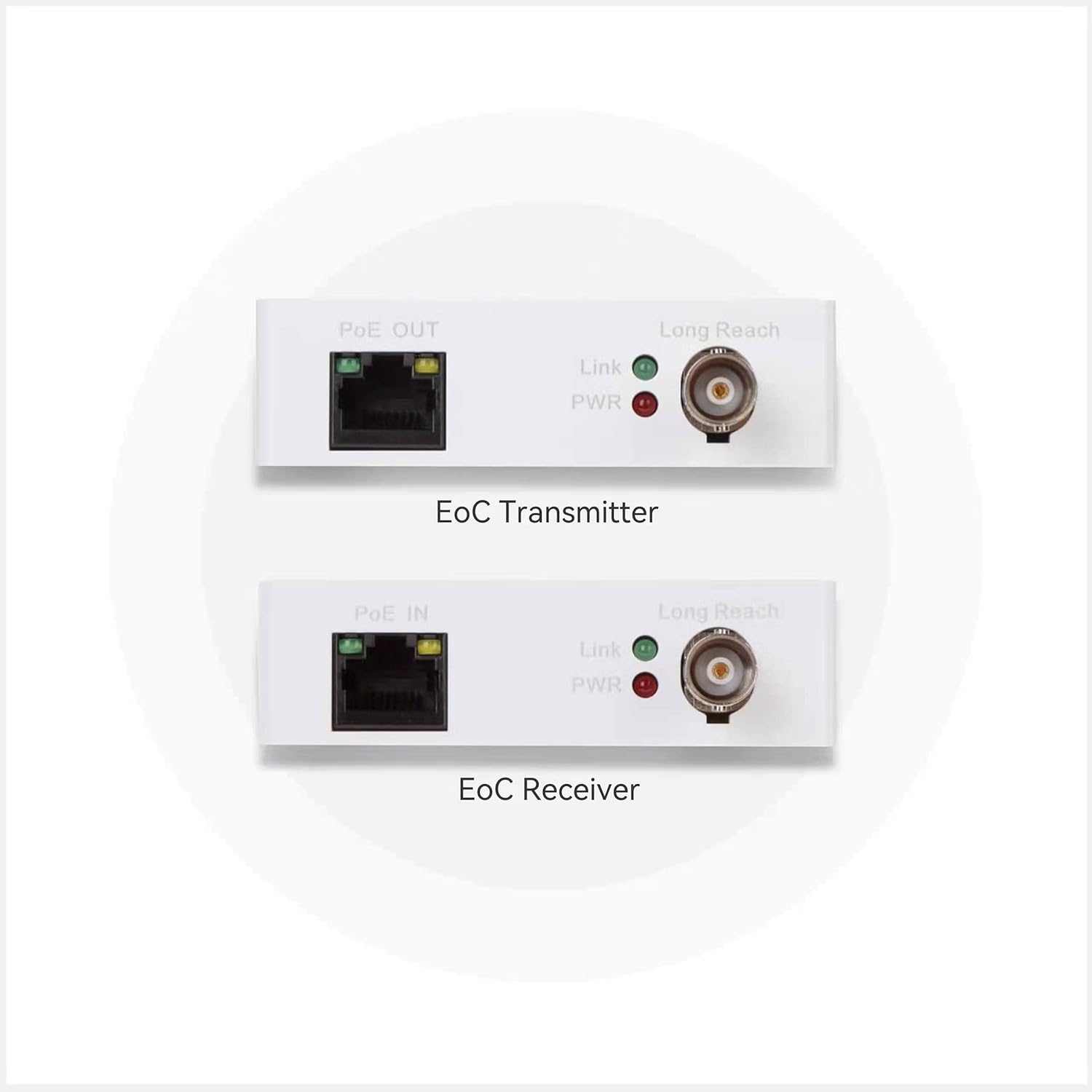

1. Because of reverse connection. EOC transmitter should be connected to POE device (IPC/VoIP), and EOC receiver is connected to POE supply device (POE NVR, POE Switch or POE Injector).
2. It is used for point-to-point coax cable direct connection ONLY, no BNC repeater/T-connect/splitter in the middle.

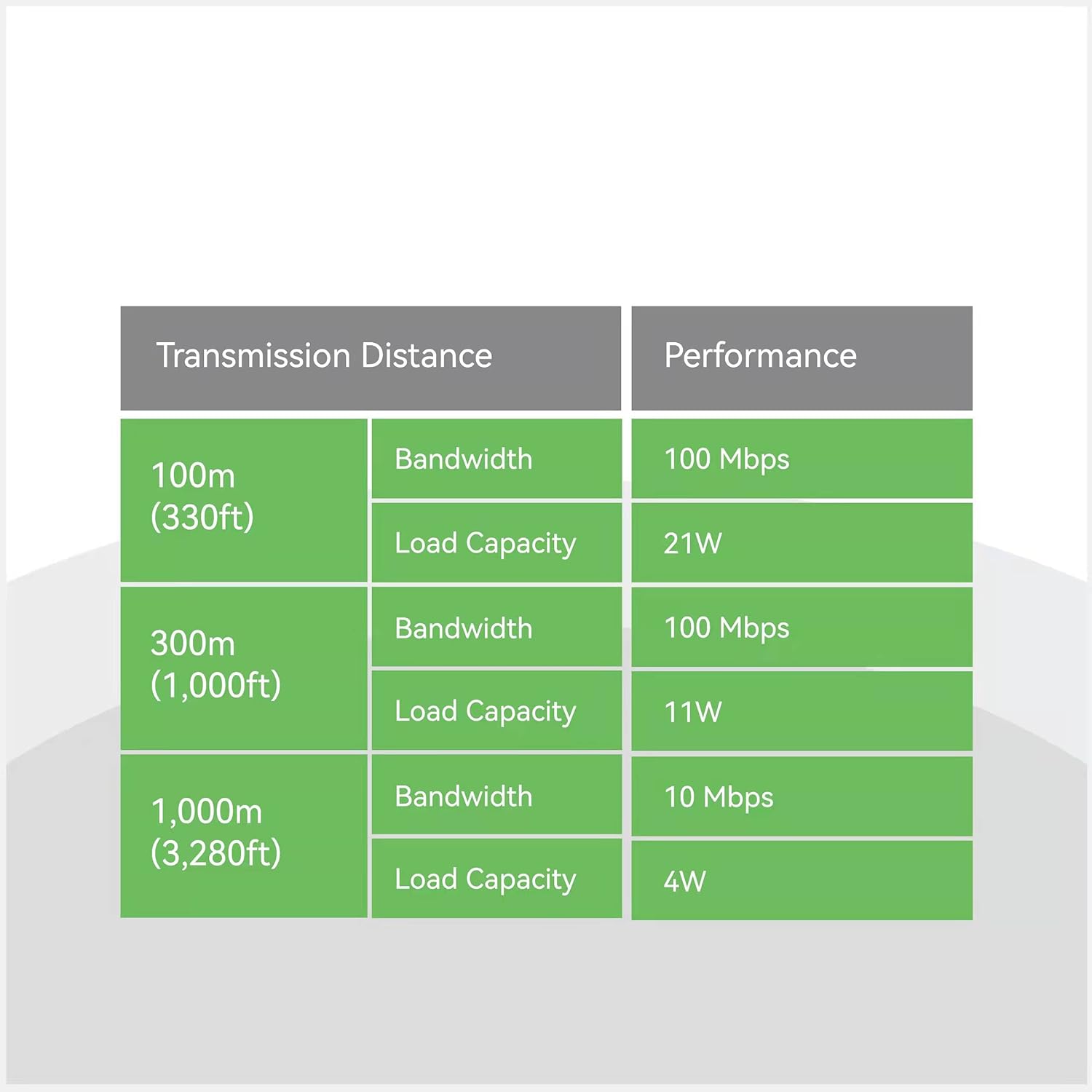

3. Because of insufficient load capacity. The maximum load capacity is 21W in 300ft transmission which is sufficient to power a regular IP PTZ camera. The load capacity can be at least 11W in 1000ft transmission which is sufficient to power most of IP cameras or VoIP phones.
4. Because of no power supply. Please be informed that EOC receiver has to be connected to an POE NVR, POE Switch or POE Injector to be powered.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

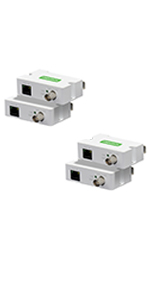

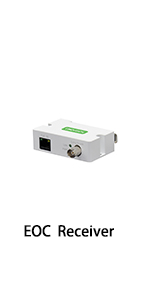

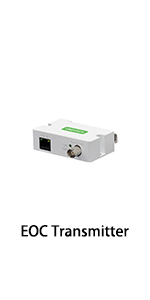

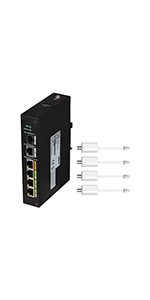

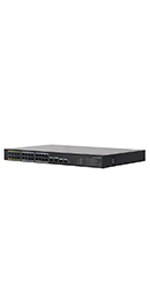

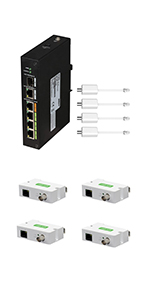

| 4 Port POE Over Coax Switch | 4 Port POE Over Coax Switch Kit | 24 Port POE Over Coax Switch | EOC Transmitter | EOC Receiver | 2 Packs EOC Converter | |
| Port Supports POE over Coax | All 4 Ports(Port 4 supports Hi PoE) | All 4 Ports(Port 4 supports Hi PoE) | Port 1-8(Port 1-2 support Hi POE Max 60W) | |||
| Web Management | ✓ | |||||
| Power Budget | 96W | 96W | 360W | |||
| IEEE802.3af/IEEE802.3at | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Plug & Play | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Package | EOC-Switch04 x 1; EOC-Adapter x 4 | EOC-Switch04 x 1; EOC-Adapter x 4; EOC-Transmitter x 4 | EOC-Switch24 x1 | EOC-Transmitter x 1 | EOC-Receiver x 1 | EOC Converter x 2 |
